General purpose optocoupler featuring 3.75kV isolation voltage and a 1Mbps data rate. This single-channel, logic IC output device offers a 50% current transfer ratio and a maximum collector current of 8mA. Designed for surface mount applications, it operates within a temperature range of 0°C to 100°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Broadcom 6N135-300E technical specifications.
General
| Package/Case | SMD/SMT |
| Current Transfer Ratio | 50% |
| Data Rate | 1Mbps |
| Fall Time | 1.5us |
| Forward Current | 25mA |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Collector Current | 8mA |
| Max Input Current | 25mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 8mA |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom 6N135-300E Datasheet
Download the complete datasheet for Broadcom 6N135-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

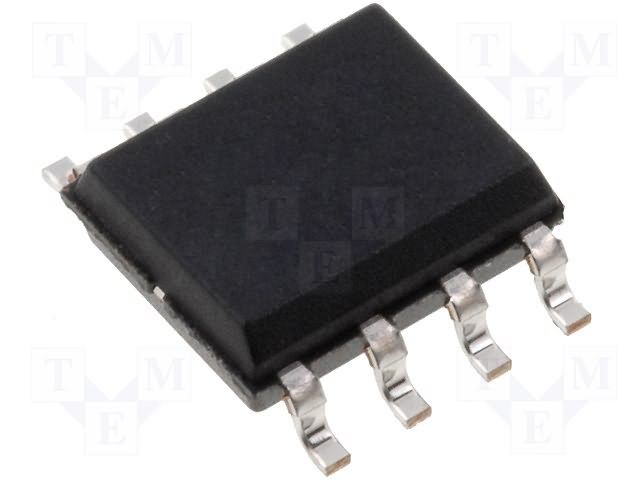

Product Images
