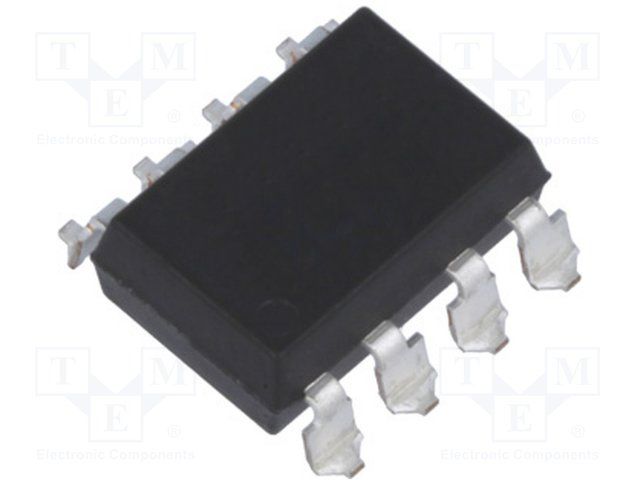

Surface mount logic IC output optocoupler featuring 3.75kV isolation voltage and a 2600% current transfer ratio. This single-element device operates with a 12mA input current and provides up to 60mA output current per channel. Designed for DC input, it offers a 7V maximum output voltage and a 135mW power dissipation. The component is RoHS compliant and suitable for surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom 6N138-300E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom 6N138-300E technical specifications.
| Package/Case | SMD/SMT |
| Current Transfer Ratio | 2600% |
| Fall Time | 10us |
| Forward Current | 20mA |
| Input Current | 12mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Max Collector Current | 60mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | 7V |
| Max Power Dissipation | 135mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 60mA |
| Output Voltage | 7V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 135mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Row Spacing | 7.62mm |
| Test Voltage | 2.5kV |
| Width | 9.65mm |
| RoHS | Compliant |
