General purpose logic IC output optocoupler featuring 3.75kV isolation voltage and a 1-element, DIP-8 package. Offers a high current transfer ratio of 5000% with a maximum output current of 60mA. Operates with a forward current of 20mA and a data rate up to 100Kbps, with propagation delay and turn-on delay times of 5µs. Designed for surface mount applications, this RoHS compliant component boasts a wide operating temperature range of -40°C to 70°C.
PackageSMD/SMT
MountingSurface Mount, Through Hole
Power135mW
Quick Jump:
Technical Specifications
Broadcom 6N139-300E technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 18V |
| Current Transfer Ratio | 5000% |
| Data Rate | 100Kbps |
| Fall Time | 25us |
| Forward Current | 20mA |
| Input Current | 12mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Collector Current | 60mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 18V |
| Max Power Dissipation | 135mW |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 60mA |
| Output Voltage | 18V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 135mW |
| Power Supply | 18V |
| Propagation Delay | 5us |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 5us |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom 6N139-300E Datasheet
Download the complete datasheet for Broadcom 6N139-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

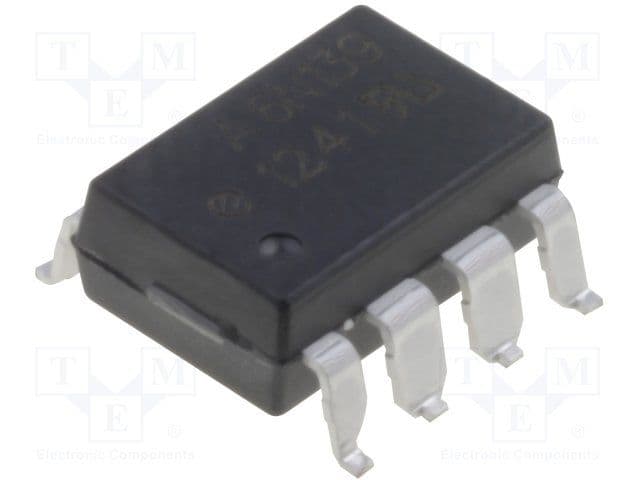

Product Images
