BROADCOM

ACNV2601-300E

Datasheet

High Speed Logic Output Optocoupler, 1-CH, 7.5kV Isolation, 50mA Out

Broadcom

ACNV2601-300E

Name: ACNV2601-300E Broadcom
Brand: Broadcom
SKU: ACNV2601-300E

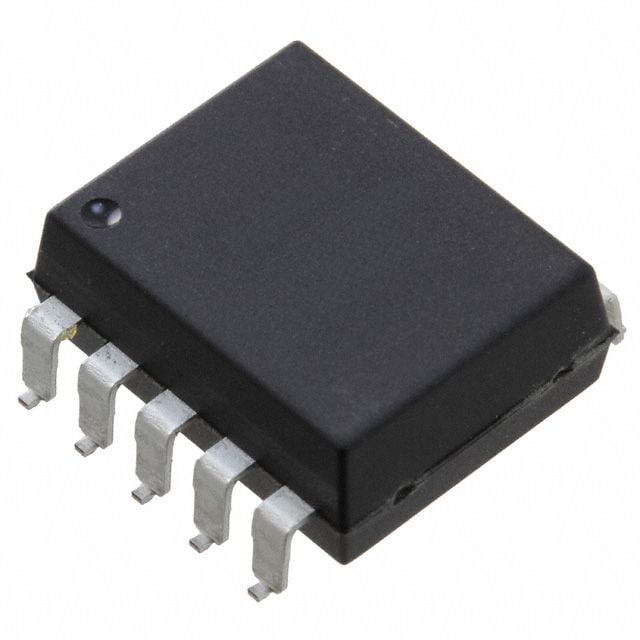

High Speed Logic Output Optocoupler, 1-CH, 7.5kV Isolation, 50mA Out

High-speed logic output optocoupler featuring a single channel with DC input. This surface-mount device offers an isolation voltage of 7.5kV and a maximum output current of 50mA per channel. Key performance specifications include a propagation delay and turn-on delay time of 80ns, and a fall time of 0.01µs. Operating temperature range is -40°C to 105°C, with a maximum power dissipation of 85mW.

PackageSMD/SMT

MountingSurface Mount

Power85mW

Quick Jump:

Technical Specifications

Broadcom ACNV2601-300E technical specifications.

General

Package/Case	SMD/SMT
Collector Emitter Breakdown Voltage	7V
Contact Plating	Tin, Matte
Direction	Unidirectional
Fall Time	0.01us
Input Current	16mA
Input Type	DC
Isolation Voltage	7.5kV
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Output Current	50mA
Max Power Dissipation	40mW
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Current per Channel	50mA
Package Quantity	175
Packaging	Rail/Tube
Power Dissipation	85mW
Propagation Delay	80ns
Reach SVHC Compliant	No
Reverse Breakdown Voltage	3V
RoHS Compliant	Yes
Turn-On Delay Time	80ns
