General purpose optocoupler featuring 5kV isolation voltage and a unidirectional, logic IC output. This surface mount device offers a push-pull output type with a high level output current of 2A and low level output current of 2A. It operates with a DC input type, requiring 16mA input current, and supports a maximum input current of 25mA. The component boasts a 1-element configuration, a 0.300-inch package size, and is RoHS compliant. Approvals include CSA, UR, IEC, EN, and UL.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACNW3130-300E technical specifications.
General
Approvals
CSA, UR, IEC, EN, UL
Package/Case
SMD/SMT
Contact Plating
Tin, Matte
Direction
Unidirectional
Fall Time
0.1us
High Level Output Current
2A
Input Current
16mA
Input Type
DC
Isolation Voltage
5kV
Low Level Output Current
2A
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
295mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
1.5A
Output Type
PUSH-PULL
Package Quantity
42
Packaging
Rail/Tube
Propagation Delay
500ns
Pulse Width Distortion (PWD)
300ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
500ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACNW3130-300E Datasheet
Download the complete datasheet for Broadcom ACNW3130-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

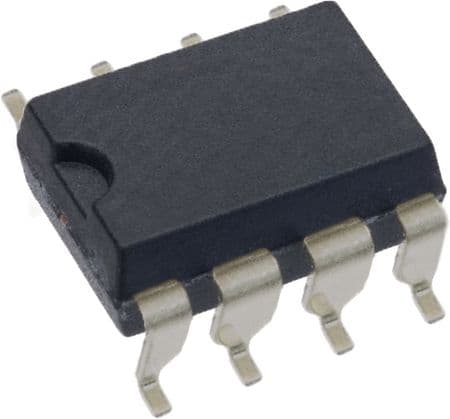

Product Images
