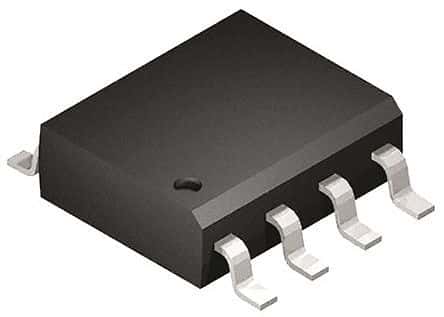

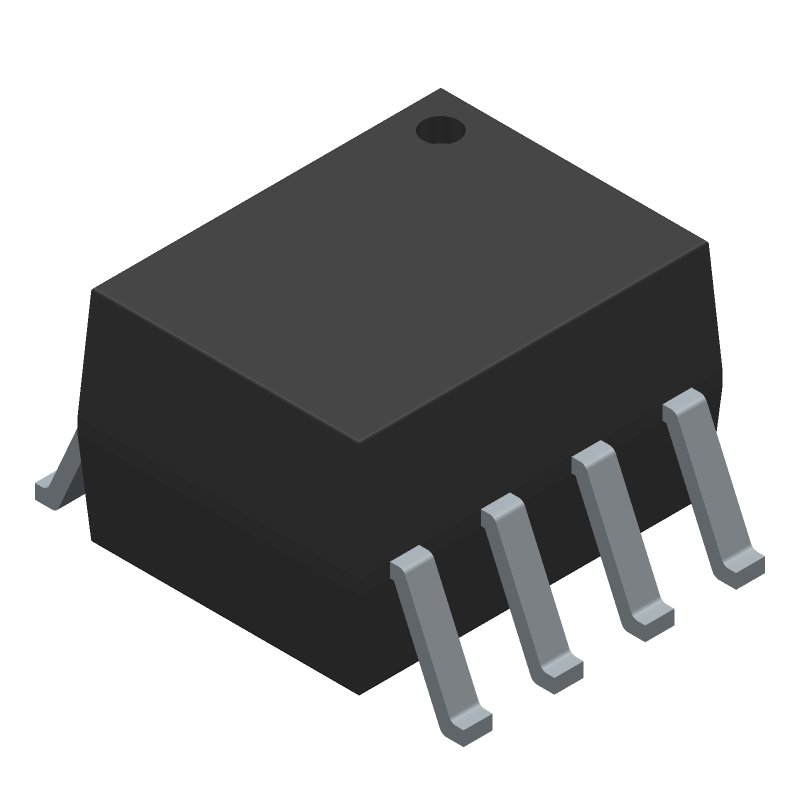

High-speed, 2-channel logic output optocoupler featuring a push-pull output configuration. Designed for unidirectional signal transmission, it offers an isolation voltage of 3.75kV and a collector-emitter breakdown voltage of 11V. Key performance metrics include a 2.2mA input current, 10mA maximum output current per channel, and a propagation delay of 250ns with a fall time of 11ns. This surface-mount component operates within a temperature range of -40°C to 105°C and is supplied in an 8-pin SO package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPL-024L-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ACPL-024L-000E technical specifications.
| Approvals | UL, CSA, IEC |
| Package/Case | SO |
| Collector Emitter Breakdown Voltage | 11V |
| Direction | Unidirectional |
| Fall Time | 11ns |
| Input Current | 2.2mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Max Input Current | 8mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Current per Channel | 10mA |
| Output Type | PUSH-PULL |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Propagation Delay | 250ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Turn-On Delay Time | 250ns |
| RoHS | Compliant |
