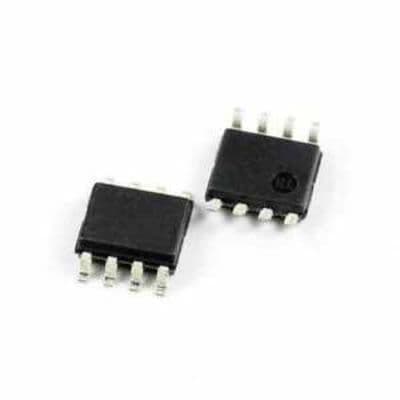

2-channel logic IC output optocoupler, featuring a 3750V isolation rating and 10MBps data rate. This surface mount device, housed in an SO package with tin-matte plating, offers a unidirectional signal path with a TOTEM POLE output type. Operating across a -40°C to 105°C temperature range, it supports a 2mA forward current and delivers 10mA output current per channel. Key performance metrics include an 80ns propagation delay and a 12ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPL-064L-560E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ACPL-064L-560E technical specifications.
| Package/Case | SO |
| Contact Plating | Tin, Matte |
| Direction | Unidirectional |
| Fall Time | 12ns |
| Forward Current | 2mA |
| Input Type | DC |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 20mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 10mA |
| Output Current per Channel | 10mA |
| Output Type | TOTEM POLE |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 20mW |
| Propagation Delay | 80ns |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 80ns |
| RoHS | Compliant |
Download the complete datasheet for Broadcom ACPL-064L-560E to view detailed technical specifications.
