BROADCOM

ACPL-071L-000E

Datasheet

1-Ch 3.75kV Isolation Optocoupler, Push-Pull, SOIC, 15MBps

Broadcom

ACPL-071L-000E

Name: ACPL-071L-000E Broadcom
Brand: Broadcom
SKU: ACPL-071L-000E

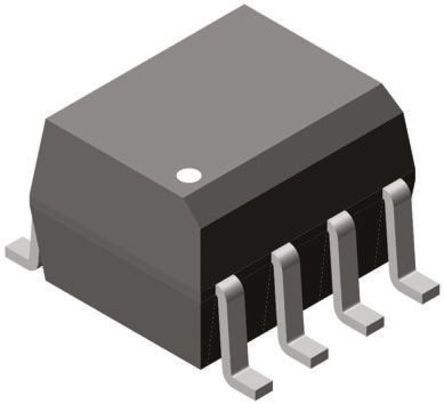

1-Ch 3.75kV Isolation Optocoupler, Push-Pull, SOIC, 15MBps

General purpose, 1-channel, surface mount optocoupler featuring a push-pull output and 3.75kV isolation voltage. This unidirectional device operates with a 20mA forward current and 18mA input current, delivering up to 10mA output current. Achieving 15MBps data rates, it offers a 50ns propagation delay and 50ns turn-on delay time. Designed for a wide operating temperature range of -40°C to 105°C, it is RoHS compliant and UL, CSA, IEC approved.

PackageSOIC

MountingSurface Mount

Quick Jump:

Technical Specifications

Broadcom ACPL-071L-000E technical specifications.

General

Approvals	UL, CSA, IEC
Package/Case	SOIC
Collector Emitter Breakdown Voltage	5V
Direction	Unidirectional
Fall Time	0.025us
Forward Current	20mA
Input Current	18mA
Input Type	DC
Isolation Voltage	3.75kV
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Output Current	10mA
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Current	10mA
Output Current per Channel	10mA
Output Type	PUSH-PULL
Package Quantity	100
Packaging	Rail/Tube
Propagation Delay	50ns
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Turn-On Delay Time	50ns
