General purpose transistor output optocoupler featuring 3kV isolation voltage and a 1-element, single-channel design. This surface mount device offers a 50mA maximum collector current and 80V collector-emitter breakdown voltage. It operates within a -55°C to 110°C temperature range and boasts a 600% current transfer ratio. Approvals include UL and CSA, with RoHS compliance.
PackageSO
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom ACPL-217-50DE technical specifications.
General
Approvals
UL, CSA
Package/Case
SO
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
400mV
Contact Plating
Tin, Matte
Current Transfer Ratio
600%
Forward Current
50mA
Input Type
DC
Isolation Voltage
3kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-217-50DE Datasheet
Download the complete datasheet for Broadcom ACPL-217-50DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

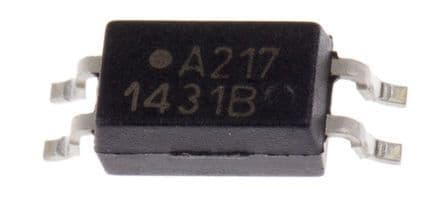

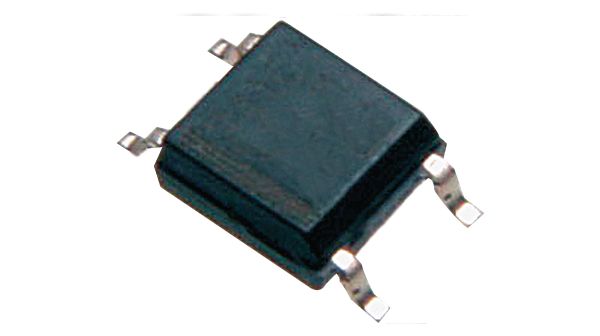

Product Images
