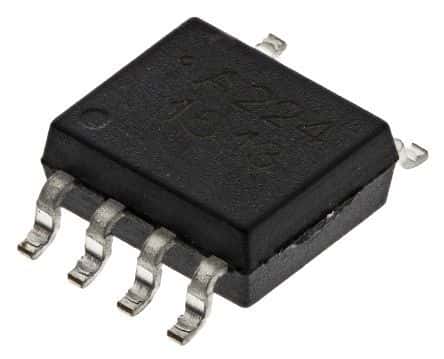

General purpose optocoupler featuring AC input and transistor output. Offers 3kV isolation voltage and a 2-element configuration within an SOIC package. Maximum collector current is 50mA with a collector emitter voltage of 80V and a saturation voltage of 400mV. Operates across a -55°C to 110°C temperature range with a 50% current transfer ratio. Surface mountable with tin, matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPL-224-500E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ACPL-224-500E technical specifications.
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Contact Plating | Tin, Matte |
| Current Transfer Ratio | 50% |
| Fall Time | 3us |
| Forward Current | 50mA |
| Input Current | 20mA |
| Input Type | AC |
| Isolation Voltage | 3kV |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Broadcom ACPL-224-500E to view detailed technical specifications.
