The ACPL-227-56BE is a dual optocoupler with a collector-emitter breakdown voltage of 80V and a current transfer ratio of 50%. It has a maximum operating temperature of 110°C and a minimum operating temperature of -55°C. The device is packaged in a SOIC-8 package and is RoHS compliant. It has a maximum power dissipation of 200mW and a maximum input current of 50mA.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-227-56BE technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | SOIC |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 50% |
| Forward Current | 50mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3kV |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACPL-227-56BE Datasheet
Download the complete datasheet for Broadcom ACPL-227-56BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

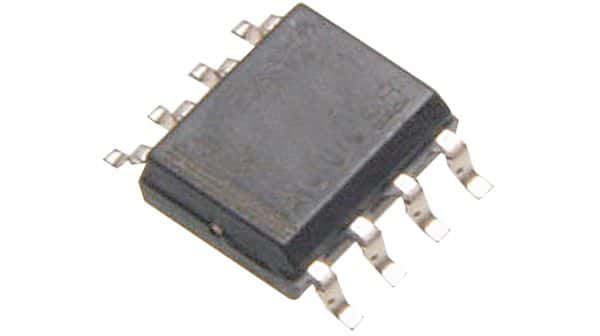

Product Images
