Technical Specifications
Broadcom ACPL-34JT-500E technical specifications.
General
| Approvals | CSA, UR, IEC, EN |
| Package/Case | SOIC |
| Fall Time | 50ns |
| Forward Current | 10mA |
| High Level Output Current | 1A |
| Input Type | DC |
| Low Level Output Current | 750mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Power Dissipation | 580mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 850 |
| Packaging | Tape and Reel |
| Propagation Delay | 280ns |
| Pulse Width Distortion (PWD) | 100ns |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, R²Coupler™ |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACPL-34JT-500E Datasheet
Download the complete datasheet for Broadcom ACPL-34JT-500E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

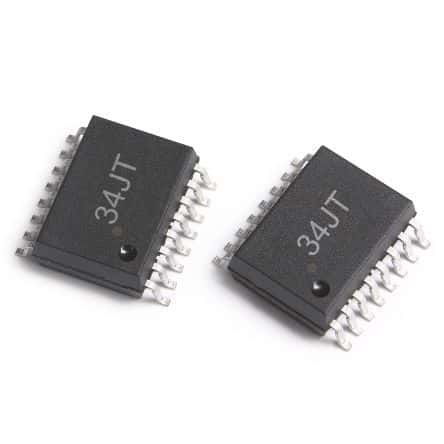

Product Images
