High-speed, logic output optocoupler featuring a push-pull output and buffer input. This unidirectional, single-channel device offers an isolation voltage of 3.75kV and a propagation delay of 40ns. With a maximum operating temperature of 105°C and a DIP package, it supports through-hole mounting. Approvals include UL, CSA, and VDE, with RoHS compliance.
PackageDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Broadcom ACPL-772L-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
DIP
Collector Emitter Breakdown Voltage
5.5V
Contact Plating
Tin, Matte
Direction
Unidirectional
Fall Time
8ns
Input Current
15mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Input Current
10uA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current
10mA
Output Current per Channel
10mA
Output Type
PUSH-PULL
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
150mW
Propagation Delay
40ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
40ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-772L-000E Datasheet
Download the complete datasheet for Broadcom ACPL-772L-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

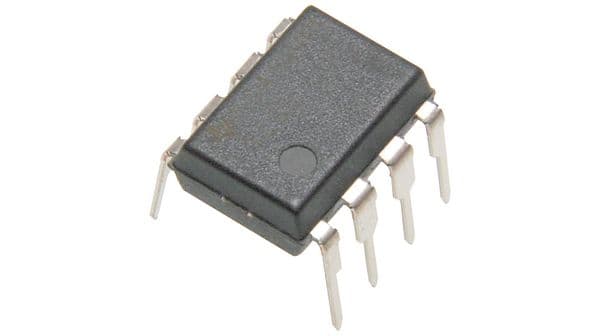

Product Images
