General purpose optocoupler with 1-element, unidirectional signal transmission. Features 3.75kV isolation voltage, 25Mbps data rate, and push-pull output type. Surface mount package with 6V collector-emitter breakdown voltage. Operating temperature range from -40°C to 105°C, with 150mW power dissipation. UL, CSA, and VDE approved, RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Broadcom ACPL-772L-360E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
6V
Direction
Unidirectional
Fall Time
8ns
Isolation Voltage
3.75kV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
10mA
Output Current per Channel
10mA
Output Type
PUSH-PULL
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
150mW
Propagation Delay
40ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
40ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-772L-360E Datasheet
Download the complete datasheet for Broadcom ACPL-772L-360E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

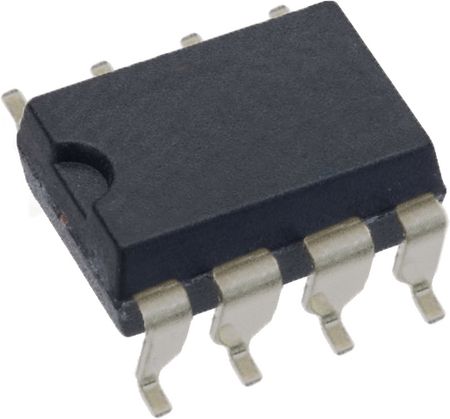

Product Images
