General purpose transistor output optocoupler featuring 5kV isolation and a 2-element configuration. This component offers a 70V collector-emitter voltage and 50mA maximum collector current, with a typical current transfer ratio of 600%. Designed for through-hole mounting in a PDIP package, it operates within a temperature range of -30°C to 100°C and includes a 200mV collector-emitter saturation voltage.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Broadcom ACPL-827-000E technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
2
Number of Elements
2
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-827-000E Datasheet
Download the complete datasheet for Broadcom ACPL-827-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

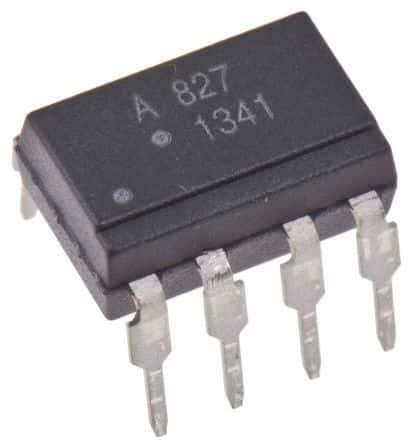

Product Images
