Surface mount transistor output optocoupler featuring 5kV isolation and 2 channels. Offers a 70V collector-emitter breakdown voltage and a 260% current transfer ratio, with a maximum collector current of 50mA. Operates within a -30°C to 100°C temperature range and includes UL, CSA, and VDE approvals. Packaged in a DIP-8 footprint with a 200mW power dissipation.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom ACPL-827-30BE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
70V
Current Transfer Ratio
260%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-827-30BE Datasheet
Download the complete datasheet for Broadcom ACPL-827-30BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

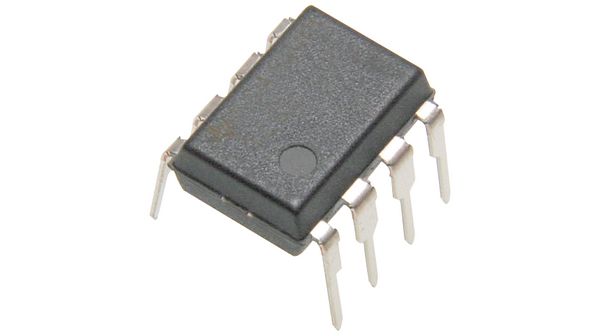

Product Images
