Single-channel isolation amplifier optocoupler, surface mountable in an 8-pin SOIC package. Features a 200kHz -3dB bandwidth, 5kV isolation voltage, and a maximum operating temperature of 105°C. Operates with a supply voltage range of 3V to 5.5V, drawing 13mA operating supply current. Input bias current is 100nA with an input offset voltage of 600µV.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-C790-000E technical specifications.
General
-3db Bandwidth
200kHz
Amplifier Type
ISOLATION
Bandwidth
200kHz
Package/Case
SOIC
Forward Current
230mA
Height
3.18mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
600uV
Isolation Voltage
5kV
Lead Free
Lead Free
Length
5.85mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Circuits
1
Operating Supply Current
13mA
Output Current per Channel
11mA
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.807mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-C790-000E Datasheet
Download the complete datasheet for Broadcom ACPL-C790-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

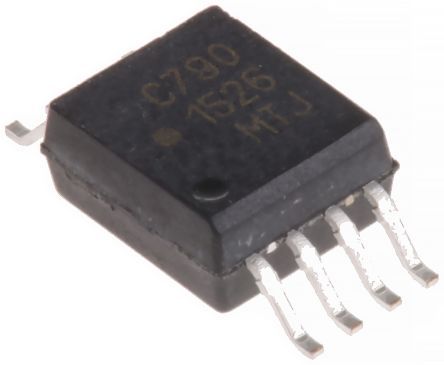

Product Images
