General purpose optocoupler featuring 5kV isolation voltage and a 200kHz bandwidth. This single-channel, 8-pin SOIC surface mount device operates with supply voltages from 3V to 5.5V, drawing a nominal 13mA. It offers 11mA output current per channel and is RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-C79B-500E technical specifications.
General
| -3db Bandwidth | 200kHz |
| Amplifier Type | ISOLATION |
| Bandwidth | 200kHz |
| Package/Case | SOIC |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 600uV |
| Isolation Voltage | 5kV |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 13mA |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 13mA |
| Output Current per Channel | 11mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACPL-C79B-500E Datasheet
Download the complete datasheet for Broadcom ACPL-C79B-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

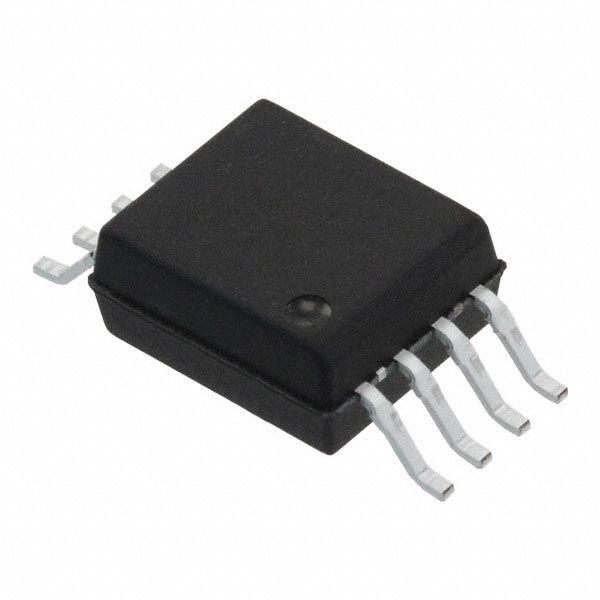

Product Images
