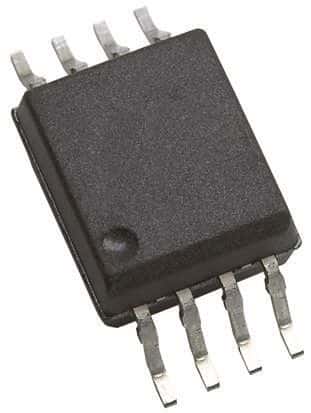

1-channel optocoupler with push-pull output, offering 2.5A output current and 2A high/low level output current. Features 3.75kV isolation voltage and 18ns fall time, with a propagation delay of 250ns and turn-on delay of 0.35us. Operates from -40°C to 105°C, with a 16mA input current and 255mW max power dissipation. Surface mountable in an 8-pin SO package, this RoHS compliant component is UL, CSA, and IEC approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPL-H342-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ACPL-H342-000E technical specifications.
| Approvals | UL, CSA, IEC |
| Package/Case | SO |
| Direction | Unidirectional |
| Fall Time | 18ns |
| High Level Output Current | 2A |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Low Level Output Current | 2A |
| Max Input Current | 16mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Power Dissipation | 255mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 2.5A |
| Output Type | PUSH-PULL |
| Package Quantity | 80 |
| Packaging | Rail/Tube |
| Propagation Delay | 250ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 0.35us |
| RoHS | Compliant |
