Broadcom
ACPL-K312-060E
Logic IC Output Optocoupler, 1-Element, 5000V Isolation, ROHS COMPLIANT, PLASTIC, SOP-6
PackageSOIC
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-K312-060E technical specifications.
General
Approvals
CSA, UR, IEC, EN
Package/Case
SOIC
Direction
Unidirectional
Fall Time
0.5us
High Level Output Current
2A
Input Type
DC
Isolation Voltage
5kV
Low Level Output Current
2A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
295mW
Mount
Surface Mount
Number of Channels
1
Output Type
PUSH-PULL
Package Quantity
80
Packaging
Rail/Tube
Propagation Delay
500ns
Pulse Width Distortion (PWD)
300ns
RoHS Compliant
Yes
Turn-On Delay Time
500ns
Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-K312-060E Datasheet
Download the complete datasheet for Broadcom ACPL-K312-060E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

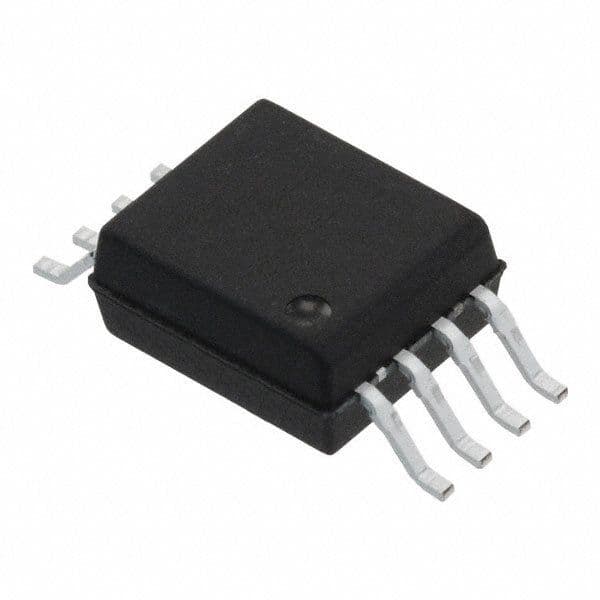

Product Images
