General purpose logic IC output optocoupler featuring 3.75kV isolation and a 5MBps data rate. This unidirectional, single-channel device offers a PUSH-PULL output type and operates with a 6mA input current. Key specifications include an 11V collector-emitter breakdown voltage, 10mA output current, and a maximum power dissipation of 600mW. Designed for surface mounting in an SO package, it supports a wide operating temperature range from -40°C to 105°C and holds UL, CSA, and IEC approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPL-M21L-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

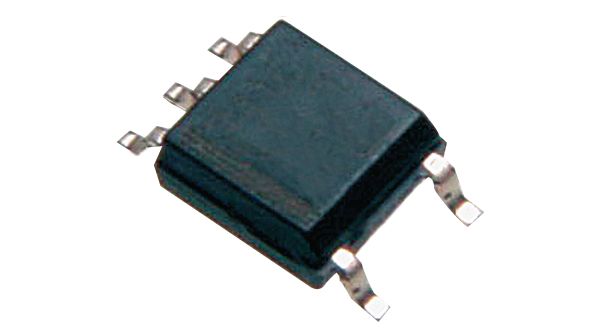

Broadcom ACPL-M21L-000E technical specifications.
| Approvals | UL, CSA, IEC |
| Package/Case | SO |
| Collector Emitter Breakdown Voltage | 11V |
| Direction | Unidirectional |
| Fall Time | 11ns |
| Forward Current | 8mA |
| Input Current | 6mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Max Input Current | 6mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 10mA |
| Output Current per Channel | 10mA |
| Output Type | PUSH-PULL |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 600mW |
| Propagation Delay | 250ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| Turn-On Delay Time | 250ns |
| RoHS | Compliant |
