General purpose, 1-channel, logic IC output optocoupler featuring 3.75kV isolation and a 15Mbps data rate. Surface mountable in a SOIC package, this unidirectional optocoupler operates from a 2.7V to 5.5V supply and offers a maximum output current of 50mA. Key specifications include a 90ns propagation delay and 20mA forward current. Approvals include UL, CSA, and IEC, with RoHS compliance.
PackageSOIC
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Broadcom ACPL-M60L-000E technical specifications.
General
Approvals
UL, CSA, IEC
Package/Case
SOIC
Data Rate
15Mbps
Direction
Unidirectional
Fall Time
0.02us
Forward Current
20mA
Input Current
15mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
7V
Max Power Dissipation
85mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
50mA
Output Current per Channel
50mA
Output Voltage
7V
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
85mW
Propagation Delay
90ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
90ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-M60L-000E Datasheet
Download the complete datasheet for Broadcom ACPL-M60L-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

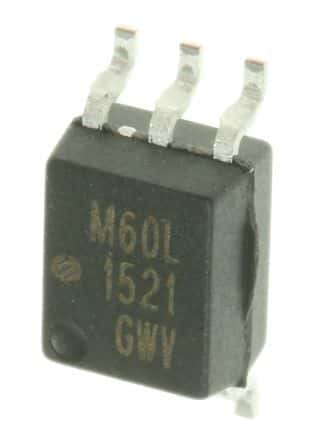

Product Images
