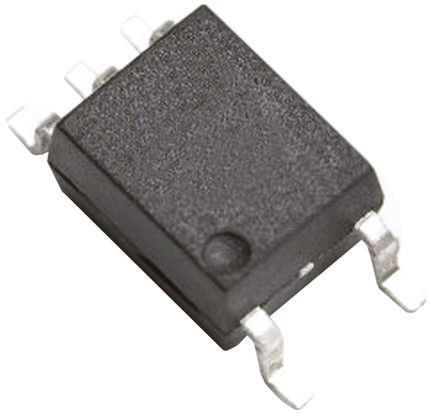

General purpose optocoupler featuring 1-element, unidirectional signal transfer with 4kV isolation voltage. This surface mount SOIC package component offers a 10MBps data rate and a maximum output current of 50mA. Operating across a wide temperature range of -40°C to 125°C, it boasts a 75ns propagation delay and 10ns fall time. Designed for DC input, this RoHS compliant device is suitable for demanding applications.
PackageSOIC
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Broadcom ACPL-M61T-000E technical specifications.
General
Package/Case
SOIC
Direction
Unidirectional
Fall Time
10ns
Forward Current
20mA
Input Current
15mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Lead Free
Max Input Current
15mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Power Dissipation
85mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
50mA
Output Current per Channel
50mA
Output Voltage
7V
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
85mW
Propagation Delay
75ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, R²Coupler™
Turn-On Delay Time
75ns
Compliance
RoHS
Compliant
