General purpose optocoupler featuring 4kV isolation voltage and 10MBps data rate. This unidirectional, single-channel device offers a 50mA output current and a 75ns propagation delay. Designed for surface mount applications, it operates within a -40°C to 125°C temperature range and is RoHS compliant. The SOIC package is supplied on tape and reel.
PackageSOIC
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Broadcom ACPL-M61T-500E technical specifications.
General
Package/Case
SOIC
Direction
Unidirectional
Fall Time
10ns
Forward Current
20mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Power Dissipation
85mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
50mA
Output Current per Channel
50mA
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
85mW
Propagation Delay
75ns
Radiation Hardening
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, R²Coupler™
Turn-On Delay Time
75ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-M61T-500E Datasheet
Download the complete datasheet for Broadcom ACPL-M61T-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

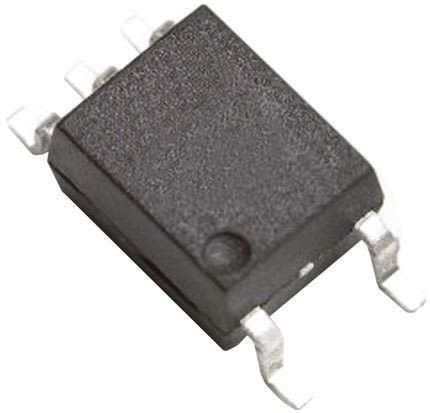

Product Images
