BROADCOM

ACPL-M72T-000E

Datasheet

High Speed Logic Output Optocoupler, 1-CH, Push-Pull, 4kV Isolation

Broadcom

ACPL-M72T-000E

Name: ACPL-M72T-000E Broadcom
Brand: Broadcom
SKU: ACPL-M72T-000E

High Speed Logic Output Optocoupler, 1-CH, Push-Pull, 4kV Isolation

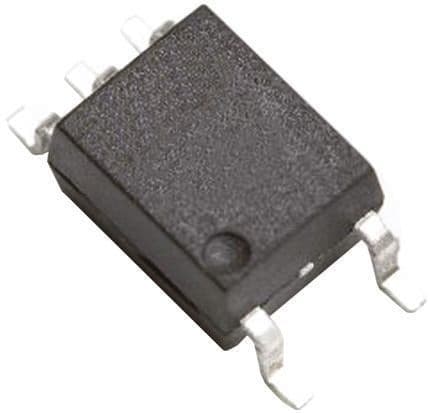

High-speed, logic-output optocoupler featuring a unidirectional, single-channel, push-pull output. Designed for automotive applications with a 4kV isolation voltage and operating temperature range of -40°C to 125°C. Surface-mount SOIC package with tin, matte contact plating. Key specifications include a 15mA input current, 20mA forward current, 10ns fall time, and 100ns propagation delay. UL, CSA, and IEC approved, with RoHS compliance.

PackageSOIC

MountingSurface Mount

Power40mW

Quick Jump:

Technical Specifications

Broadcom ACPL-M72T-000E technical specifications.

General

Approvals	UL, CSA, IEC
Package/Case	SOIC
Contact Plating	Tin, Matte
Direction	Unidirectional
Fall Time	10ns
Forward Current	20mA
Input Current	15mA
Input Type	DC
Isolation Voltage	4kV
Max Input Current	15mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Power Dissipation	40mW
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Output Type	PUSH-PULL
Package Quantity	100
Packaging	Rail/Tube
Power Dissipation	40mW
Propagation Delay	100ns
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
RoHS Compliant	Yes
Series	Automotive, AEC-Q100, R²Coupler™
Turn-On Delay Time	100ns
