General purpose, 1-channel optocoupler with logic IC output, offering 3.75kV isolation. Features a 10Mbps data rate, 75ns propagation delay, and 75ns turn-on delay. Designed for surface mount applications in a SO package, it operates from -40°C to 85°C with a maximum power dissipation of 85mW. Approvals include UL, CSA, and IEC, with RoHS and lead-free compliance.
PackageSO
MountingSurface Mount
Power85mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Broadcom ACPL-W611-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Broadcom ACPL-W611-000E technical specifications.
General
| Approvals | UL, CSA, IEC |
| Package/Case | SO |
| Collector Emitter Breakdown Voltage | 7V |
| Data Rate | 10Mbps |
| Direction | Unidirectional |
| Fall Time | 0.01us |
| Forward Current | 20mA |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 7V |
| Max Power Dissipation | 85mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACPL-W611-000E Datasheet
Download the complete datasheet for Broadcom ACPL-W611-000E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

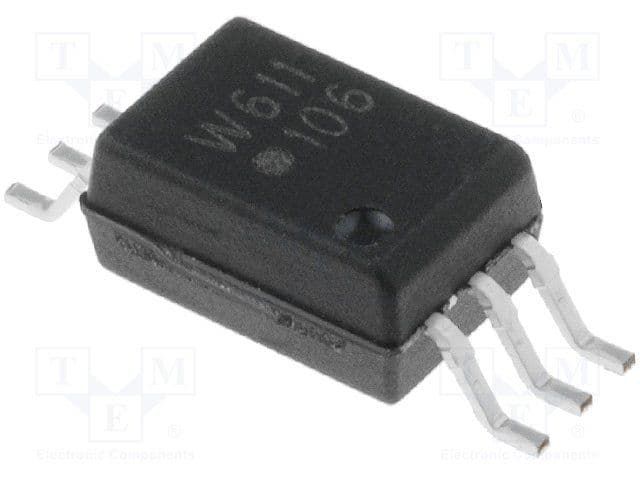

Product Images
