High-speed logic output optocoupler featuring three channels for DC input. Offers 2.5kV isolation voltage and a 15Mbps data rate with a 100ns propagation delay. Surface mountable in a 16-pin SOIC package, it supports a maximum output current of 50mA per channel. Operating temperature range is -40°C to 100°C, with UL, CSA, and VDE approvals.
PackageSOIC
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Broadcom ACSL-6310-00TE technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | SOIC |
| Collector Emitter Breakdown Voltage | 7V |
| Data Rate | 15Mbps |
| Direction | Bidirectional |
| Fall Time | 12ns |
| Forward Current | 15mA |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Input Current | 15mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 40mW |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Elements | 3 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 65mW |
| Propagation Delay | 100ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 100ns |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ACSL-6310-00TE Datasheet
Download the complete datasheet for Broadcom ACSL-6310-00TE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

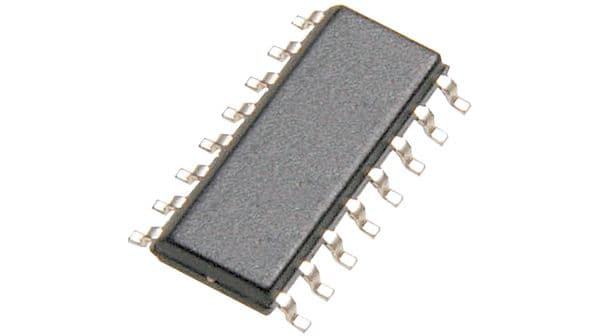

Product Images
