BROADCOM

ACSL-6400-00TE

Datasheet

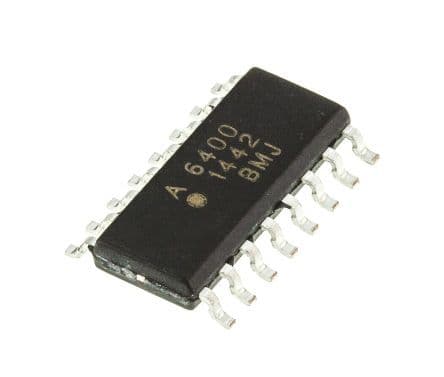

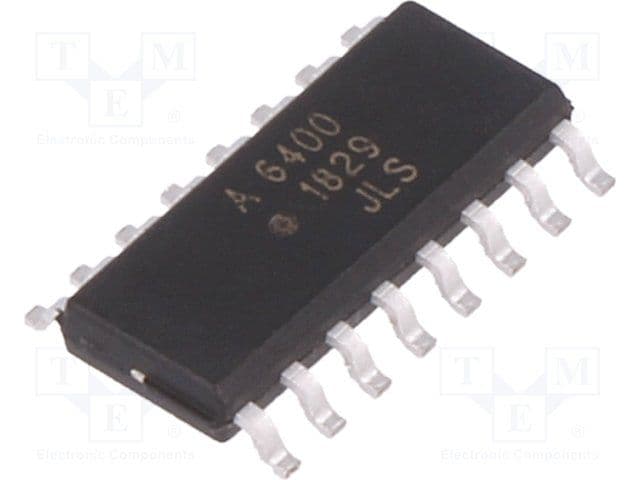

4-Ch Optocoupler, 2.5kV Isolation, 15Mbps, SOIC

Broadcom

ACSL-6400-00TE

Name: ACSL-6400-00TE Broadcom
Brand: Broadcom
SKU: ACSL-6400-00TE

4-Ch Optocoupler, 2.5kV Isolation, 15Mbps, SOIC

General purpose logic IC output optocoupler featuring 4 channels and 2.5kV isolation. This unidirectional optocoupler operates at a 15Mbps data rate with a 100ns propagation delay and turn-on delay. It offers a 15mA forward current and 50mA output current per channel, with a 7V collector-emitter breakdown voltage. Designed for surface mount applications in a SOIC package, it is RoHS compliant and UL, CSA, VDE approved.

PackageSOIC

MountingSurface Mount

Power65mW

Quick Jump:

Technical Specifications

Broadcom ACSL-6400-00TE technical specifications.

General

Approvals	UL, CSA, VDE
Package/Case	SOIC
Collector Emitter Breakdown Voltage	7V
Data Rate	15Mbps
Direction	Unidirectional
Fall Time	0.012us
Forward Current	15mA
Input Current	15mA
Input Type	DC
Isolation Voltage	2.5kV
Isolation Voltage-Max	2.5kV
Lead Free	Lead Free
Max Input Current	15mA
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	50mA
Max Output Voltage	7V
Max Power Dissipation	40mW
Mount	Surface Mount
Number of Channels	4
Number of Elements	4
Output Current	50mA
Output Current per Channel	50mA
Package Quantity	50
Packaging	Rail/Tube
Power Dissipation	65mW
Propagation Delay	100ns
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
RoHS Compliant	Yes
Turn-On Delay Time	100ns
