Logic IC output optocoupler featuring 4 channels and 4 elements, offering 2.5kV isolation voltage. This surface mount device operates with a 15mA forward and input current, supporting a 15Mbps data rate. Key specifications include a 7V collector-emitter breakdown voltage, 50mA maximum output current per channel, and a wide operating temperature range of -40°C to 100°C. The component is RoHS compliant and includes UL, CSA, and VDE approvals.
PackageSOIC
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Broadcom ACSL-6410-00TE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SOIC
Collector Emitter Breakdown Voltage
7V
Contact Plating
Tin, Matte
Data Rate
15Mbps
Direction
Bidirectional
Fall Time
0.012us
Forward Current
15mA
Input Current
15mA
Input Type
DC
Isolation Voltage
2.5kV
Isolation Voltage-Max
2.5kV
Lead Free
Lead Free
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
7V
Max Power Dissipation
40mW
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Output Current
50mA
Output Current per Channel
50mA
Package Quantity
50
Packaging
Bulk
Power Dissipation
65mW
Propagation Delay
100ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
100ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACSL-6410-00TE Datasheet
Download the complete datasheet for Broadcom ACSL-6410-00TE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

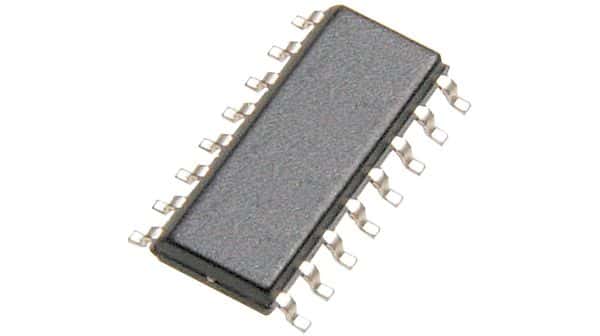

Product Images
