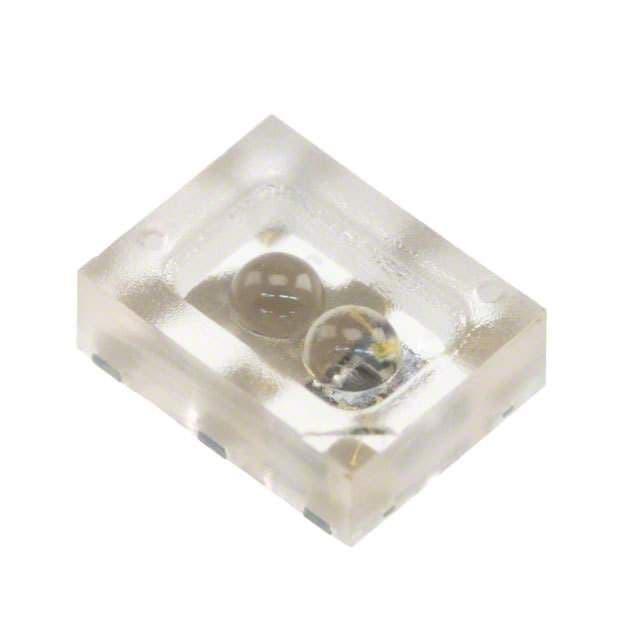

Rotary incremental optical encoder with digital square wave output. Features 2 channels and a 5V output voltage. Operates on a nominal supply voltage of 3.3V, with an operating supply voltage of 5V and an operating supply current of 2.2mA. Designed for surface mount (SMD/SMT) applications with a 5mA current rating. RoHS compliant and operates within a temperature range of -20°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom AEDR-8300-1W2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Package/Case | SMD/SMT |
| Current Rating | 5mA |
| Input Current | 4.8mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Voltage | 5.5V |
| Mount | Surface Mount, Through Hole |
| Nominal Supply Voltage (DC) | 3.3V |
| Number of Channels | 2 |
| Operating Supply Current | 2.2mA |
| Operating Supply Voltage | 5V |
| Output | DIGITAL |
| Output Voltage | 5V |
| Overall Depth | 3.96mm |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage Rating | 5V |
| RoHS | Compliant |
