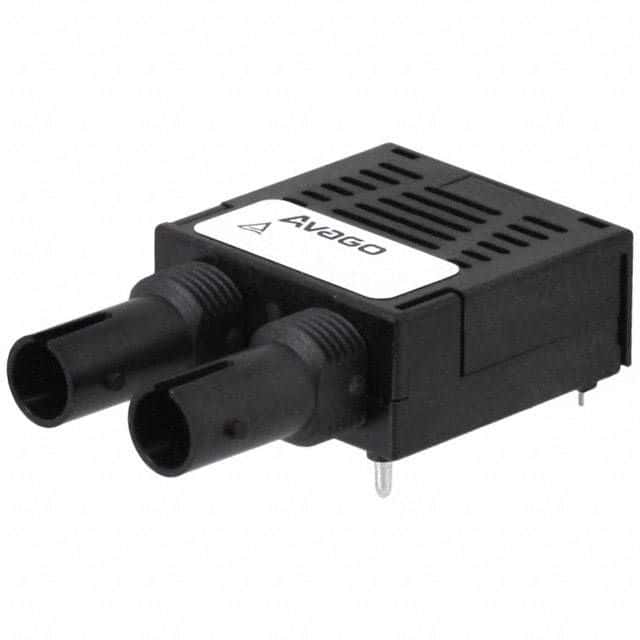

125MBd optical fiber transceiver for Ethernet applications, operating at a nominal wavelength of 1308nm. Features a 100Mbps data rate with a 2ns fall time. Supports a wide temperature range from -40°C to 85°C and operates with a supply voltage between 3.135V and 5.25V. Available in through-hole, snap-in, and surface mount configurations, this lead-free, RoHS-compliant component is packaged in a 9-pin module.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom AFBR-5803ATQZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | ETHERNET |
| Data Rate | 100Mbps |
| Fall Time | 2ns |
| Height | 9.8mm |
| Lead Free | Lead Free |
| Length | 49mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.135V |
| Mount | Through Hole, Snap in, Surface Mount |
| Operating Wavelength-Nom | 1308nm |
| Output Current | 50mA |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.25V |
| Wavelength | 1300nm |
| Width | 13.6mm |
| RoHS | Compliant |
