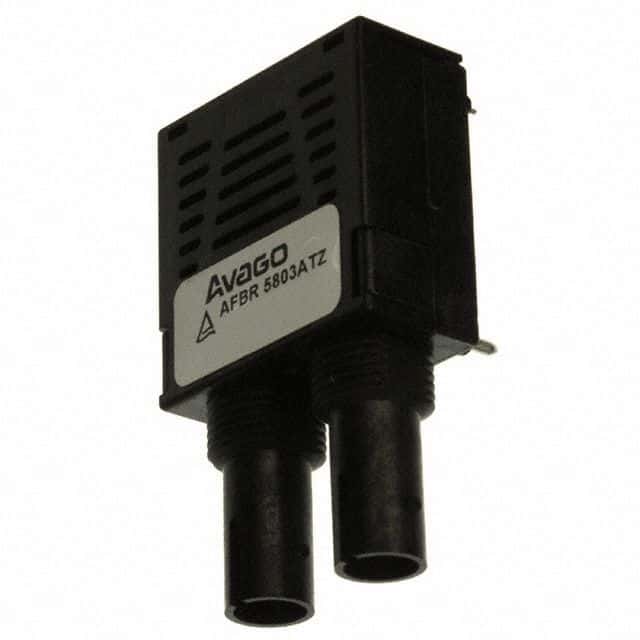

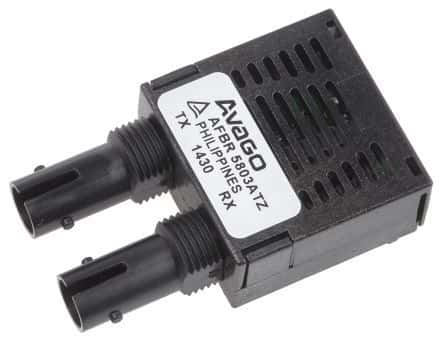

Fiber optic transceiver module supporting 100Mbps data rates at a 1300nm wavelength. Features a 1.6ns fall time and operates within a temperature range of -10°C to 85°C. This through-hole mount component has a 5V operating supply voltage, with a maximum supply voltage of 5.25V and a minimum of 3.135V. It offers a maximum output current of 50mA and is lead-free and RoHS compliant. The module measures 25.4mm in length, 12mm in width, and 24.8mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom AFBR-5803ATZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom AFBR-5803ATZ technical specifications.
| Package/Case | Module |
| Data Rate | 100Mbps |
| Fall Time | 1.6ns |
| Height | 24.8mm |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 50mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3.135V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Output Current | 50mA |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Wavelength | 1300nm |
| Width | 12mm |
| RoHS | Compliant |
