Broadcom

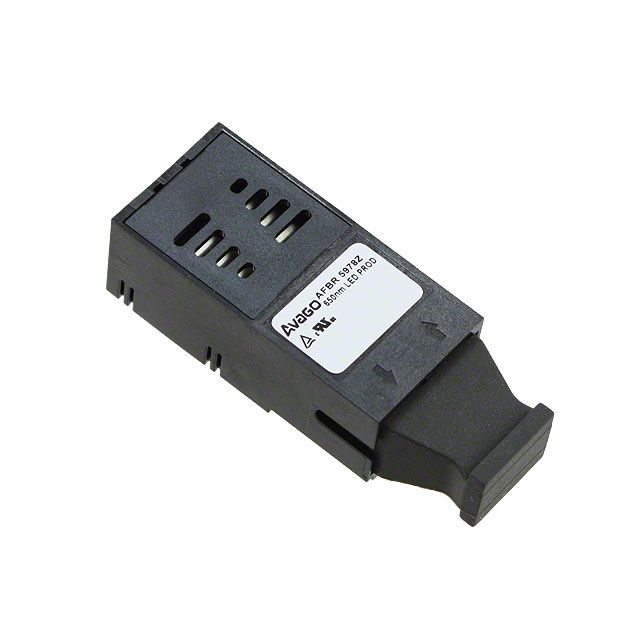

AFBR-5978Z
Transceiver, 635nm Min, 660nm Max, 125Mbps(Tx), 125Mbps(Rx), SC-RJ Connector, Board/panel Mount, ROHS COMPLIANT, PLASTIC PACKAGE-12
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Broadcom AFBR-5978Z technical specifications.
General
Data Rate
100Mbps
Fall Time
6.5ns
Height
12.85mm
Lead Free
Lead Free
Length
35mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Current
50mA
Mount
Through Hole, Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
50
Reach SVHC Compliant
No
RoHS Compliant
Yes
Wavelength
650nm
Width
16.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom AFBR-5978Z Datasheet
Download the complete datasheet for Broadcom AFBR-5978Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
