Broadcom
ALM-38140-BLKG
Variable Attenuator, 50MHz Min, 4000MHz Max, 3.7dB Insertion Loss-Max, 3.80 X 3.80 MM, 1 MM HEIGHT, MINIATURE, MCOB-6
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ALM-38140-BLKG technical specifications.
General
Attenuation Value
42dB
Package/Case
Module
Depth
3.8mm
Height
1.05mm
Impedance
50R
Insertion Loss
3.2dB
Lead Free
Lead Free
Length
3.8mm
Max Operating Temperature
150°C
Max Power Dissipation
300mW
Mount
Surface Mount
Package Quantity
100
Packaging
Bulk
Power Supply
2.7V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ALM-38140-BLKG Datasheet
Download the complete datasheet for Broadcom ALM-38140-BLKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

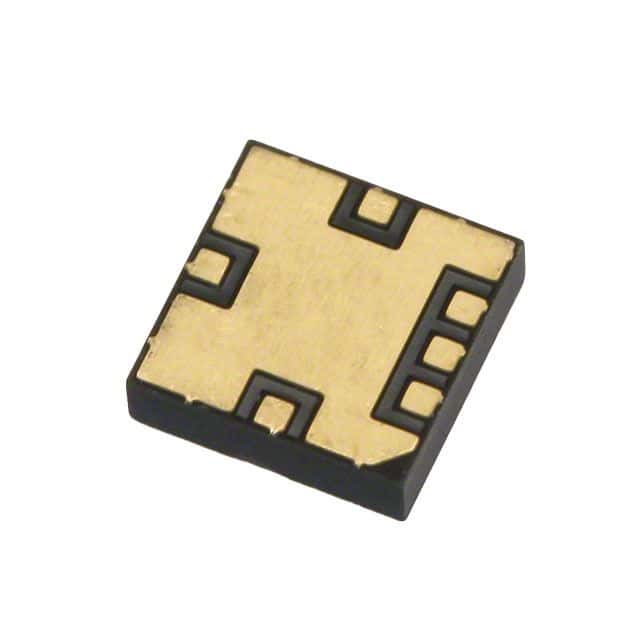

Product Images
