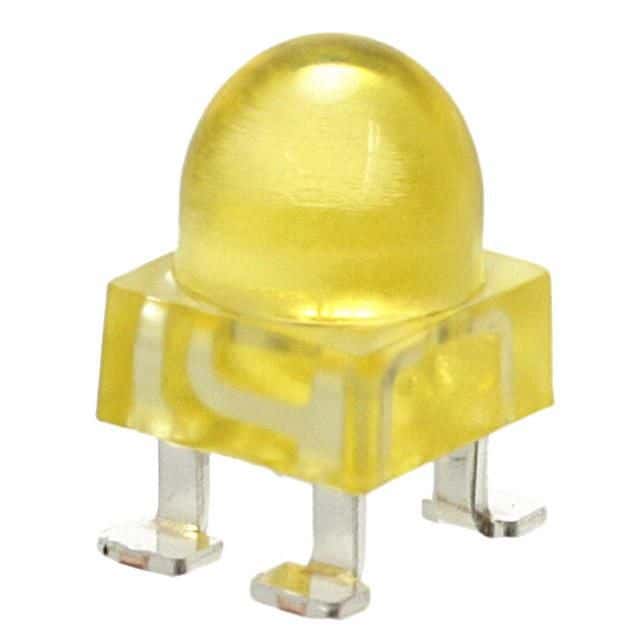

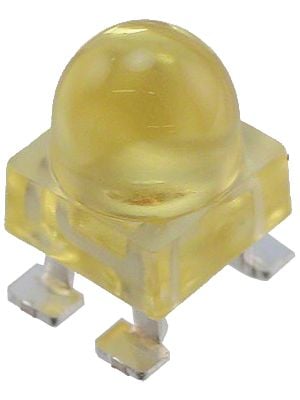

Single color LED emitter featuring a clear, diffused, round orange lens. This surface-mount device operates with a 20mA forward current and a 5V reverse voltage, delivering a luminous intensity of 9300mcd at a 590nm wavelength. With a 30° viewing angle and a maximum power dissipation of 120mW, it is RoHS compliant and suitable for operation between -40°C and 85°C. The SMT package measures 4.2mm x 4.2mm x 7mm.
PackageSMD/SMT
MountingSurface Mount
Power120mW
Quick Jump:
Technical Specifications
Broadcom ALMD-EL3D-VX002 technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Orange |
| Contact Plating | Silver |
| Depth | 4.2mm |
| Forward Current | 20mA |
| Height | 7mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 4.2mm |
| Lens Color | Orange |
| Lens Style | Round, Circular, Diffused, Colored |
| Lens Transparency | Clear |
| Luminous Intensity | 9300mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 120mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 30° |
| Wavelength | 590nm |
| Width | 4.2mm |
