PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications

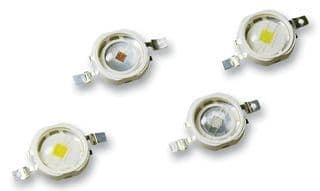

Broadcom ASMT-AA00-AQR00 technical specifications.
General
Package/Case
SMD/SMT
Color
Orange
Forward Current
350mA
Illumination Color
Orange
Lens Style
Round
Luminous Flux
43lm
Max Current Rating
500mA
Max Operating Temperature
115°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.15W
Mount
Surface Mount
Package Quantity
1000
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Test Temperature
25°C
Thermal Resistance of Package
10°C/W
Viewing Angle
140°
Wavelength
597nm
Width
7.4mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ASMT-AA00-AQR00 Datasheet
Download the complete datasheet for Broadcom ASMT-AA00-AQR00 to view detailed technical specifications.
