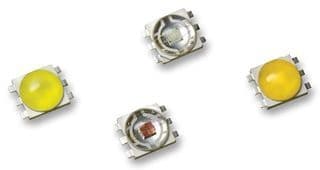

Surface mount, single-color LED emitter in a 4040 metric / 1616 imperial SMD package. Features a cool white illumination color with a Correlated Color Temperature (CCT) of 10000K. Delivers 90 lumens luminous flux at a 350mA forward current, with a maximum operating current of 500mA. Offers a wide 140° viewing angle and a robust operating temperature range from -40°C to 135°C. RoHS compliant and packaged on tape and reel.
PackageSMD/SMT
MountingSurface Mount, Board
Quick Jump:
Technical Specifications
Broadcom ASMT-JW11-NTV01 technical specifications.
General
| Case Code (Imperial) | 1616 |
| Case Code (Metric) | 4040 |
| Package/Case | SMD/SMT |
| Color | White |
| Correlated Color Temperature (CCT) | 10000K |
| Forward Current | 350mA |
| Height | 1.85mm |
| Illumination Color | White |
| Length | 4mm |
| Lens Style | Round, Circular |
| Luminous Flux | 90lm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.75W |
| Mount | Surface Mount, Board |
| Number of LEDs | 1 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Jade |
| Thermal Resistance of Package | 9°C/W |
| Viewing Angle | 140° |
| Width | 4mm |
Compliance
| RoHS | Compliant |
