Surface mount single color LED emitter, featuring an amber illumination color with a diffused, untinted lens. This component offers a 145° viewing angle and a luminous intensity of 90mcd at a 20mA forward current. Housed in a compact 0603 (1608 metric) package, it measures 1.6mm in length, 0.8mm in width, and 0.55mm in height. Operating within a temperature range of -40°C to 100°C, this RoHS compliant LED emitter has a maximum power dissipation of 48mW and a reverse voltage rating of 5V.
Package0603
MountingSurface Mount
Power48mW
Quick Jump:
Technical Specifications
Broadcom ASMT-RA45-AP932 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Orange |
| Depth | 0.8mm |
| Forward Current | 20mA |
| Height | 0.55mm |
| Illumination Color | Orange |
| Length | 1.6mm |
| Lens Color | White |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Rectangular, Colorless |
| Lens Transparency | Diffused |
| Luminous Intensity | 90mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 48mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 48mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 145° |
| Wavelength | 591nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASMT-RA45-AP932 Datasheet
Download the complete datasheet for Broadcom ASMT-RA45-AP932 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

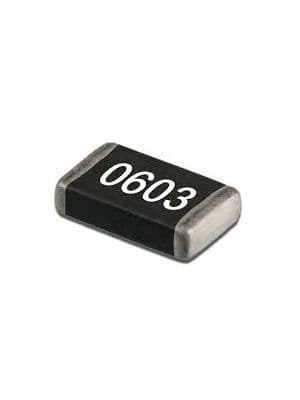

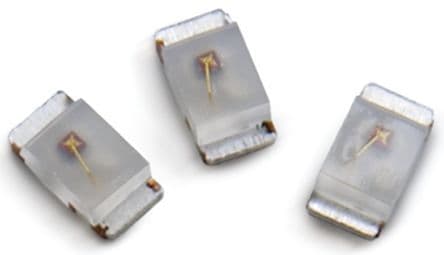

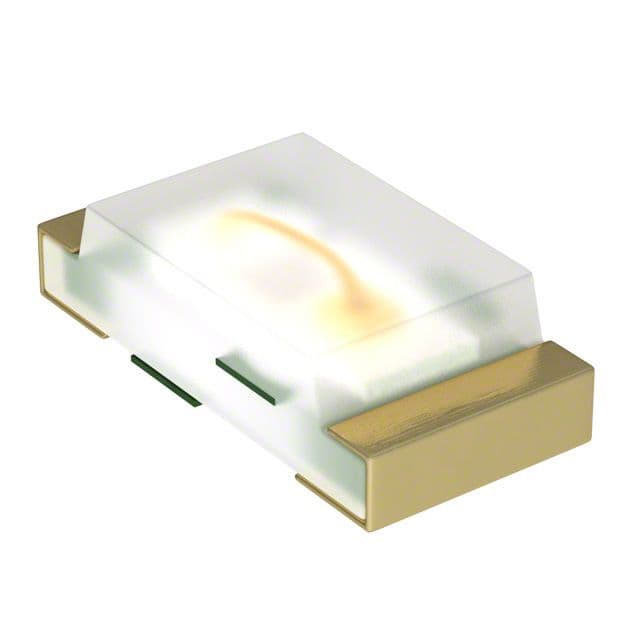

Product Images
