Single Color White LED emitter in a PLCC package, featuring a 120° viewing angle and surface mount design. Delivers 19 lumens luminous flux with a high Color Rendering Index (CRI) of 85 and a Correlated Color Temperature (CCT) of 6500K. Operates with a forward current of 100mA, a maximum power dissipation of 360mW, and a thermal resistance of 50°C/W, with an operating temperature range of -40°C to 100°C. Dimensions are 3.5mm length, 3.2mm width, and 1.1mm height, with a 3.2mm depth.
PackagePLCC
MountingSurface Mount
Power360mW
Quick Jump:
Technical Specifications
Broadcom ASMT-UWBG-NACB8 technical specifications.
General
| Package/Case | PLCC |
| Color | White |
| Color Rendering Index (CRI) | 85 |
| Contact Plating | Silver |
| Correlated Color Temperature (CCT) | 6500 K |
| Depth | 3.2mm |
| Forward Current | 100mA |
| Height | 1.1mm |
| Illumination Color | White |
| Length | 3.5mm |
| Lens Style | Square, Rectangular |
| Luminous Flux | 19lm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 360mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 360mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMST-UWBG |
| Thermal Resistance of Package | 50°C/W |
| Viewing Angle | 120° |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASMT-UWBG-NACB8 Datasheet
Download the complete datasheet for Broadcom ASMT-UWBG-NACB8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

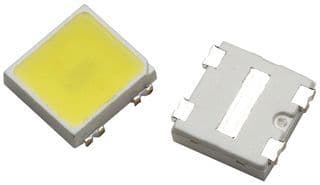

Product Images
