Triple color LED emitter featuring red, green, and blue elements in a 2.3mm LCC-6 package. Surface mountable with silver contact plating, this RoHS compliant component offers a 120° viewing angle and a luminous intensity of 380mcd. Operating with a 20mA forward current, it supports a reverse voltage of 4V and has a maximum power dissipation of 125mW. The LED emitter is designed for top view orientation with a clear, colorless square lens, and operates within a temperature range of -40°C to 110°C.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ASMT-YTB2-0BB02 technical specifications.
General
| Package/Case | PLCC |
| Color | Blue, Green, Red |
| Contact Plating | Silver |
| Depth | 3mm |
| Forward Current | 20mA |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Length | 2.8mm |
| Lens Color | Colorless |
| Lens Style | Square, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 380mcd |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Number of LEDs | 3 |
| Orientation | Top View |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 4V |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Wavelength | 470nm |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASMT-YTB2-0BB02 Datasheet
Download the complete datasheet for Broadcom ASMT-YTB2-0BB02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

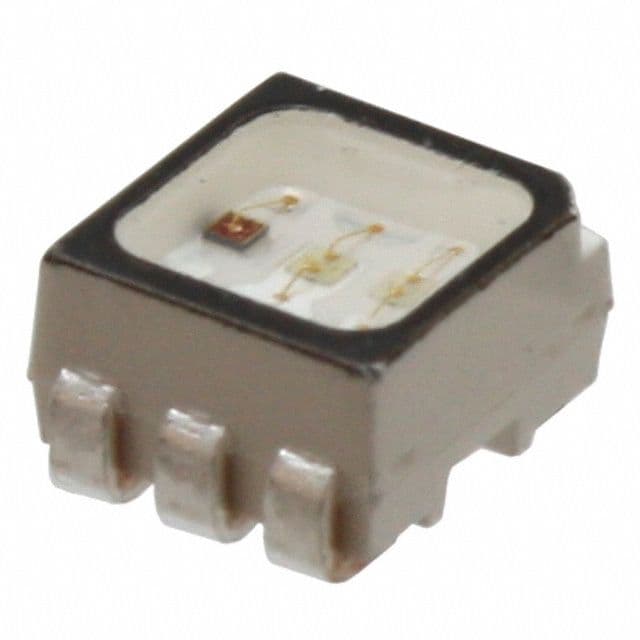

Product Images
