Triple color LED emitter in a PLCC package, featuring diffused flat square rectangular lens style. This surface mount component offers blue, green, and red light emission with a 120° viewing angle and 384mcd luminous intensity. Designed for a 20mA forward current, it operates across a -40°C to 100°C temperature range and has silver contact plating. Dimensions include 3mm length, 2.8mm width, and 2mm height.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ASMT-YTB7-0AA02 technical specifications.
General
Package/Case
PLCC
Color
Blue, Green, Red
Contact Plating
Silver
Forward Current
20mA
Height
2mm
Length
3mm
Lens Size
2.3mm
Lens Style
Flat, Square, Diffused, Rectangular
Lens Transparency
Diffused
Luminous Intensity
384mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
3
Orientation
Top View
Package Quantity
2000
Packaging
Cut Tape
Reach SVHC Compliant
No
Reverse Voltage
4V
Viewing Angle
120°
Weight
40mg
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ASMT-YTB7-0AA02 Datasheet
Download the complete datasheet for Broadcom ASMT-YTB7-0AA02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

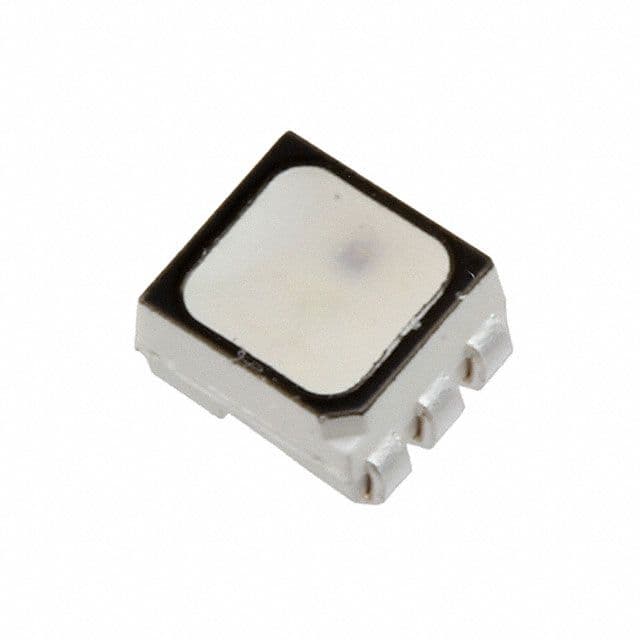

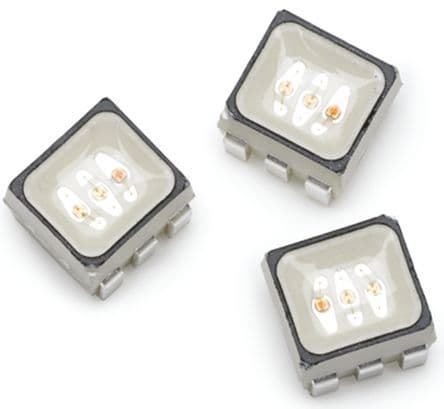

Product Images
