Transistor output optocoupler featuring 5kV isolation voltage and 70V collector-emitter breakdown voltage. This general-purpose optocoupler offers a 60mA forward current, 150mA maximum collector current, and a 250mW power dissipation. It operates within a -55°C to 100°C temperature range and is housed in a 6-pin PDIP package for through-hole mounting. UL approved and RoHS compliant.
PackagePDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Broadcom CNY17-1-000E technical specifications.
General
Approvals
UL
Package/Case
PDIP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
80%
Fall Time
10000ns
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
70V
Package Quantity
65
Packaging
Rail/Tube
Power Dissipation
250mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom CNY17-1-000E Datasheet
Download the complete datasheet for Broadcom CNY17-1-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

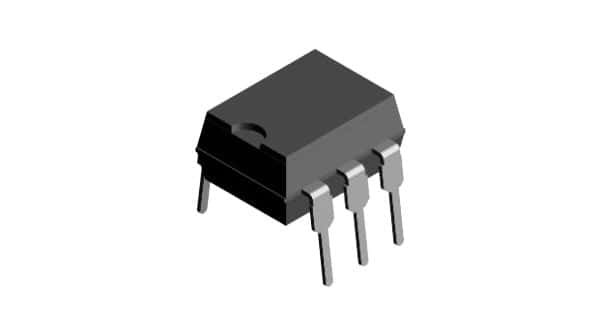

Product Images
