Surface mount transistor output optocoupler featuring 5kV isolation voltage and a 1-element, 1-channel configuration. This component offers a 70V collector-emitter voltage (VCEO) and a maximum collector current of 150mA. With a forward current of 60mA and a current transfer ratio of 200%, it operates within a temperature range of -55°C to 100°C. The device is supplied in a DIP-6 package, is RoHS compliant, and is available on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Broadcom CNY17-3-500E technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
200%
Fall Time
10000ns
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
70V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
250mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom CNY17-3-500E Datasheet
Download the complete datasheet for Broadcom CNY17-3-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

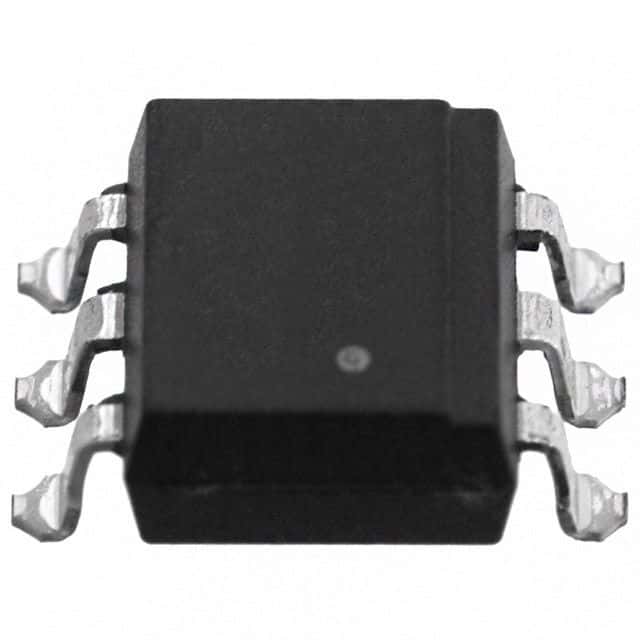

Product Images
