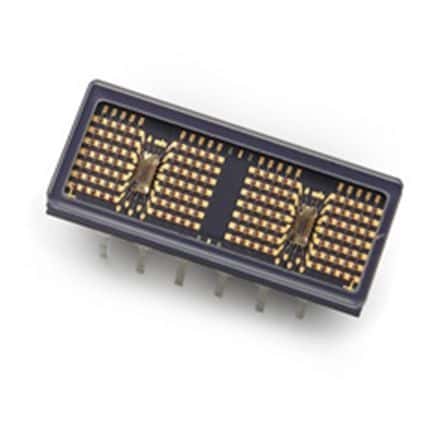

Green Dot Matrix Display Module featuring a 4-digit alphanumeric display with 35 LEDs per digit. This through-hole mounted component operates with a serial interface and a 5V supply voltage, offering a forward current of 6.2mA and luminous intensity of 3mcd. The module boasts a wide operating temperature range from -55°C to 100°C and a wavelength of 574nm. Constructed with a CDIP package, it is RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCMS-2353 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Color | Green |
| Depth | 8.43mm |
| Display Type | Dot Matrix |
| Forward Current | 6.2mA |
| Illumination Color | Green |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 20.01mm |
| Luminous Intensity | 3mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Elements | 35 |
| Operating Supply Voltage | 5V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Dissipation | 668mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HCMS-235x |
| Viewing Area (height) | 5.08mm |
| Viewing Area Length | 2.84mm |
| DC Rated Voltage | 5V |
| Wavelength | 574nm |
| RoHS | Compliant |
