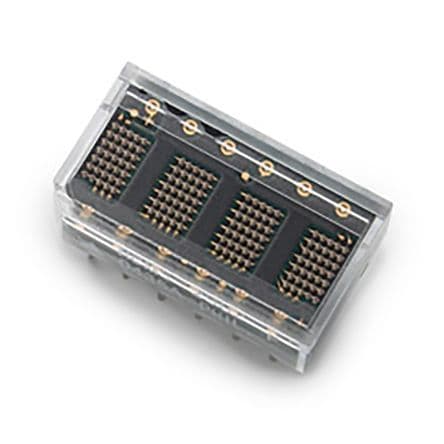

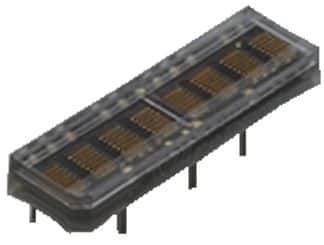

High-efficiency red dot matrix display module featuring 140 LEDs arranged in 4 positions. This 12-pin DIP component offers a parallel, 8-bit interface and operates with a 5V supply voltage. With a 5mA forward current and a wavelength of 626nm, it provides clear illumination. Designed for through-hole mounting, it boasts a compact form factor with a depth of 10.16mm and length of 17.78mm. Operating across a wide temperature range of -40°C to 85°C, this RoHS compliant module is suitable for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCMS-2902 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Red |
| Depth | 10.16mm |
| Display Type | Dot Matrix |
| Forward Current | 5mA |
| Illumination Color | Red |
| Interface | Parallel, 8 bit |
| Lead Free | Lead Free |
| Length | 17.78mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Elements | 140 |
| Number of Positions | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Consumption | 1.2W |
| Power Dissipation | 1.2W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | HCMS-29xx |
| Viewing Area (height) | 3.71mm |
| Viewing Area Length | 2.11mm |
| Wavelength | 626nm |
| RoHS | Compliant |
