Alphanumeric Dot Matrix Display Module featuring 8 characters, each with a 5x7 dot matrix configuration for a total of 280 elements. This green illuminated display offers a character width of 2.11mm and a viewing area height of 3.71mm. Operates with a 5V supply voltage, drawing 10mA forward current per LED, and boasts a luminous intensity of 114mcd at a 574nm wavelength. Encased in a 26-pin DIP package for through-hole mounting, it supports serial interface and operates within a temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power2.4W
Quick Jump:
Technical Specifications
Broadcom HCMS-2913 technical specifications.
General
| Package/Case | DIP |
| Character Width | 2.11mm |
| Color | Green |
| Depth | 10.16mm |
| Display Type | Dot Matrix |
| Forward Current | 10mA |
| Height | 10.16mm |
| Illumination Color | Green |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Luminous Intensity | 114mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Characters | 8 |
| Number of Elements | 280 |
| Operating Supply Voltage | 5V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Consumption | 2.4W |
| Power Dissipation | 2.4W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HCMS-29xx |
| Viewing Area (height) | 3.71mm |
| Viewing Area Length | 2.11mm |
| DC Rated Voltage | 5V |
| Wavelength | 574nm |
| Width | 35.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCMS-2913 Datasheet
Download the complete datasheet for Broadcom HCMS-2913 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

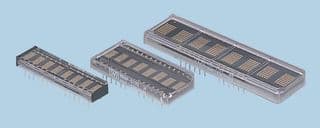

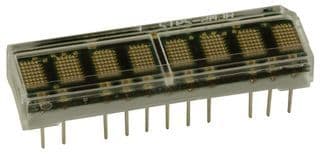

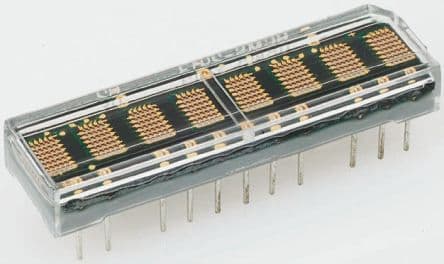

Product Images
