BROADCOM

HCMS-2915

Datasheet

Red Dot Matrix LED Display Module, 8-Digit, 140-LED, 5V, DIP

Broadcom

HCMS-2915

Name: HCMS-2915 Broadcom
Brand: Broadcom
SKU: HCMS-2915

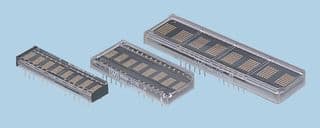

Red Dot Matrix LED Display Module, 8-Digit, 140-LED, 5V, DIP

Red dot matrix alphanumeric display module featuring 8 digits and 140 LEDs. This through-hole mount component utilizes a parallel, 8-bit interface and operates at a 5V DC supply voltage. With a 2.54mm lead pitch and 7.62mm row spacing, it offers a 35.56mm x 35.56mm package with a 10.16mm depth. The module provides a luminous intensity of 230mcd per element and is RoHS compliant.

PackageDIP

Voltage Rating5V

MountingThrough Hole

Power2.4W

Quick Jump:

Technical Specifications

Broadcom HCMS-2915 technical specifications.

General

Package/Case	DIP
Color	Red
Depth	10.16mm
Display Type	Dot Matrix
Forward Current	10mA
Illumination Color	Red
Interface	Parallel, 8 bit
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	35.56mm
Luminous Intensity	230mcd
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	3V
Mount	Through Hole
Number of Elements	280
Operating Supply Voltage	5V
Package Quantity	10
Packaging	Rail/Tube
Power Consumption	2.4W
Power Dissipation	2.4W
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	7.62mm
Series	HCMS-29xx
Viewing Area (height)	3.71mm
Viewing Area Length	2.11mm
Voltage Rating	5V
DC Rated Voltage	5V
Wavelength	637nm
Width	35.56mm
