Green alphanumeric dot matrix display module featuring 4 digits, each with 140 elements. This through-hole mount component offers a 2.54mm character width and a 574nm green illumination color. Operating with a 5V supply voltage, it supports an 8-bit parallel interface and delivers 114mcd luminous intensity. The module is RoHS compliant and designed for a wide operating temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power1.2W
Quick Jump:
Technical Specifications
Broadcom HCMS-2963 technical specifications.
General
Package/Case
DIP
Character Width
2.54mm
Color
Green
Depth
11.43mm
Display Type
Dot Matrix
Forward Current
10mA
Height
11.43mm
Illumination Color
Green
Interface
Parallel, 8 bit
Lead Free
Lead Free
Length
21.46mm
Luminous Intensity
114mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Characters
4
Number of Elements
140
Operating Supply Voltage
5V
Package Quantity
20
Packaging
Rail/Tube
Power Consumption
1.2W
Power Dissipation
1.2kW
Radiation Hardening
No
RoHS Compliant
Yes
Series
HCMS-29xx
Viewing Area (height)
4.57mm
Viewing Area Length
2.54mm
DC Rated Voltage
5V
Wavelength
574nm
Width
21.46mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HCMS-2963 Datasheet
Download the complete datasheet for Broadcom HCMS-2963 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

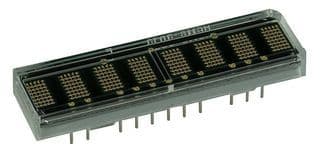

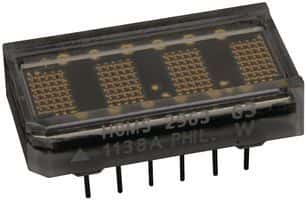

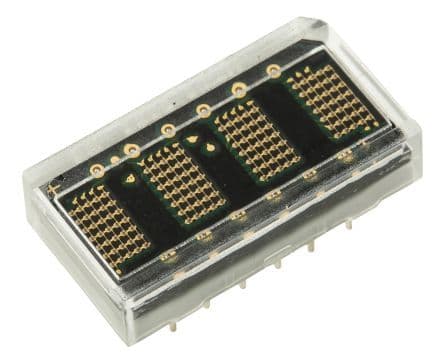

Product Images
