Four-character, 5x7 dot matrix LED display featuring green illumination. This through-hole component offers a 4.57mm character height and a 2.54mm character width, with a serial interface for control. Operating voltage ranges from 3.1V to 5.5V, with a typical 3.3V supply. The display is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power766mW
Quick Jump:
Technical Specifications
Broadcom HCMS-3967 technical specifications.
General
| Package/Case | DIP |
| Character Width | 2.54mm |
| Color | Green |
| Depth | 11.43mm |
| Display Type | Dot Matrix |
| Height | 11.43mm |
| Illumination Color | Green |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 21.46mm |
| Luminous Intensity | 1mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3.1V |
| Mount | Through Hole |
| Number of Characters | 4 |
| Number of Elements | 140 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 766mW |
| RoHS Compliant | Yes |
| Series | HCMS-39xx |
| Viewing Area (height) | 4.57mm |
| Viewing Area Length | 2.54mm |
| DC Rated Voltage | 3.3V |
| Wavelength | 574nm |
| Width | 21.46mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCMS-3967 Datasheet
Download the complete datasheet for Broadcom HCMS-3967 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

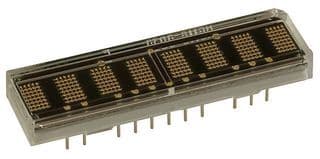

Product Images
