Green dot matrix display module featuring 280 LEDs for alphanumeric indication. This 8-digit module operates with a 3.3V supply voltage, a forward current of 10mA, and a wavelength of 574nm. Packaged in a 14-pin DIP for through-hole mounting, it offers a viewing area of 4.57mm height and 2.54mm length. Operating temperature range is -40°C to 85°C, with a maximum supply voltage of 5.5V.
PackageDIP
Voltage Rating3.3V
MountingThrough Hole
Power1.532W
Quick Jump:
Technical Specifications
Broadcom HCMS-3973 technical specifications.
General
| Package/Case | DIP |
| Color | Green |
| Depth | 11.43mm |
| Display Type | Dot Matrix |
| Forward Current | 10mA |
| Height | 0.21inch |
| Illumination Color | Green |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 1.69inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3.1V |
| Mount | Through Hole |
| Number of Elements | 280 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Consumption | 1.532W |
| Power Dissipation | 1.532W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HCMS-39xx |
| Viewing Area (height) | 4.57mm |
| Viewing Area Length | 2.54mm |
| Voltage Rating | 3.3V |
| DC Rated Voltage | 3.3V |
| Wavelength | 574nm |
| Width | 0.45inch |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCMS-3973 Datasheet
Download the complete datasheet for Broadcom HCMS-3973 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

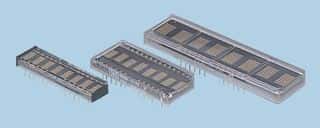

Product Images
